Create your own designer style vents out of the materials you already have
1

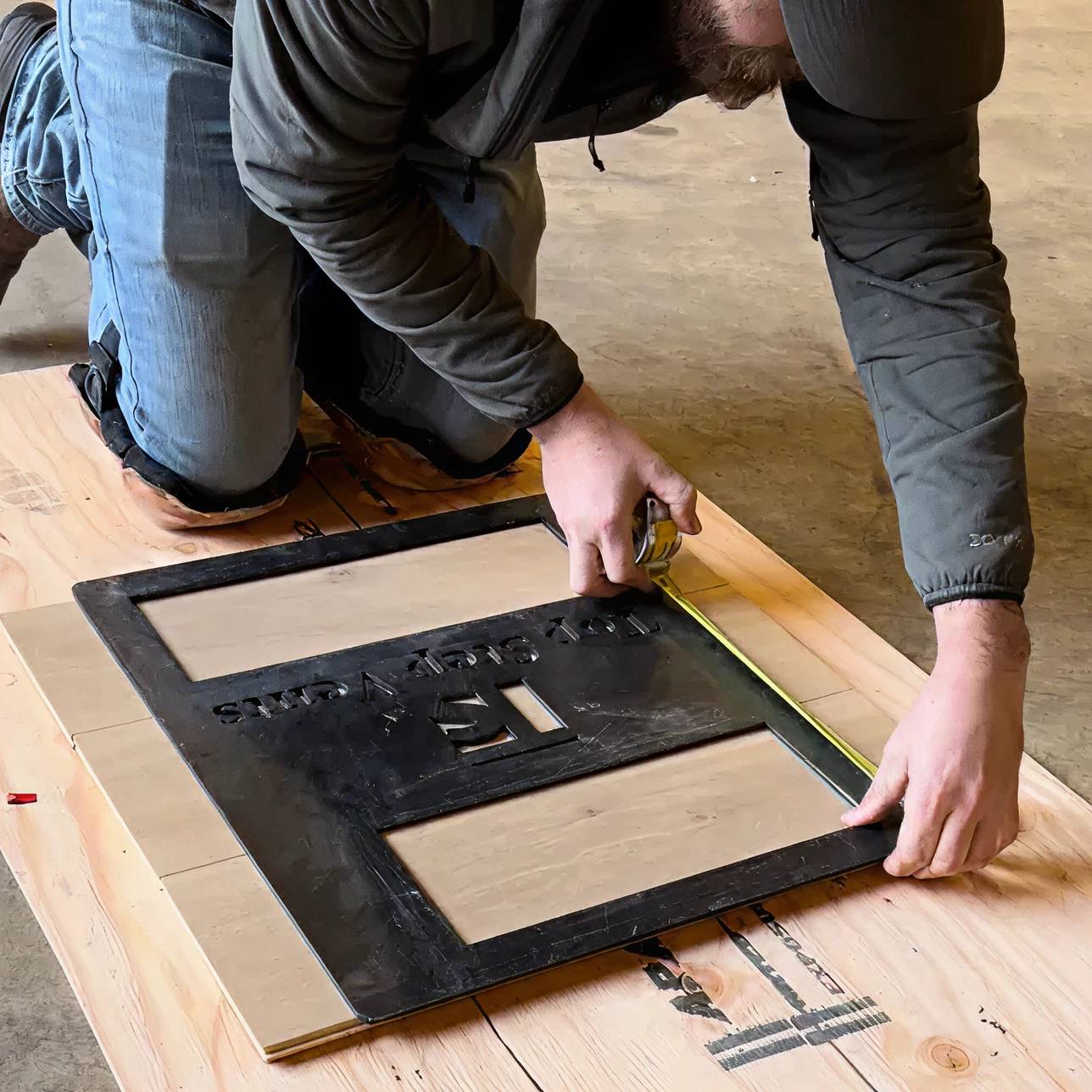

Align the Template
Square your Two Hole Template to the floor. *This is the same template you would use on our metal flush mounted vents.
2

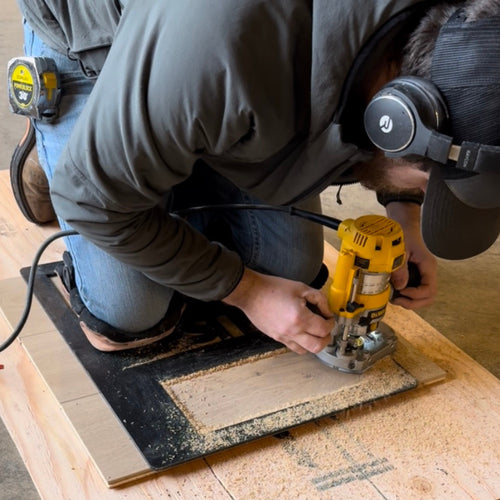

Cut the Floor Opening
Use a plunge router to router out the hole. This is where the vent will cover the duct. *We recommend to do a few passes, each a little deeper into the material.
3

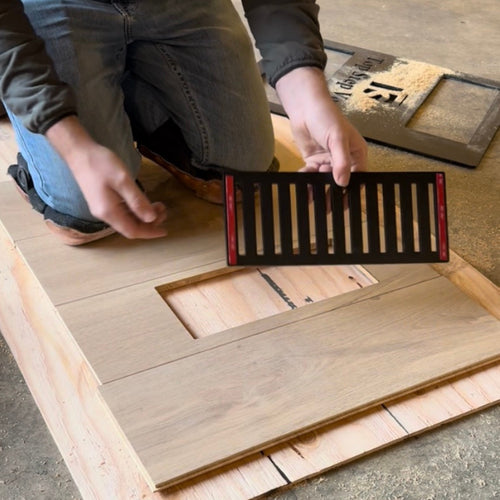

Prepare the Vent Material
Grab an extra piece of flooring that you want to cut the vent out of. Take our DIY Vent Template and adhere the template to the flooring using double sided sticky tape.
4

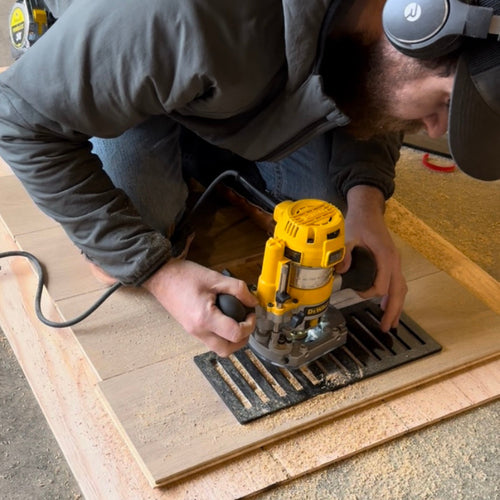

Cut The Vent
Use a plunge router to router out the vent starting with the slates, and ending with the outer edge. For the best results, cut the vent from the back side. Again, we recommend doing a few passes, each time cutting a little deeper into the material.
5

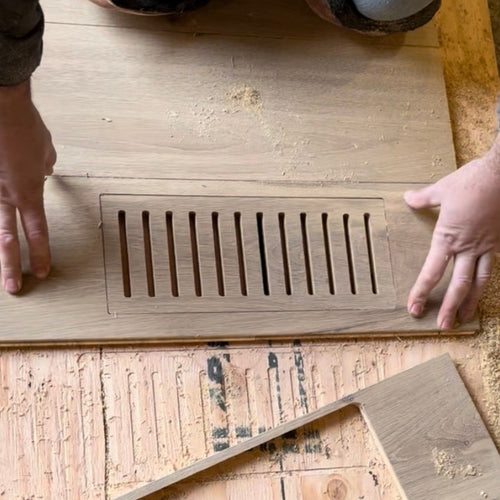

Install Your Vent
Take your newly cut vent and place it in the hole that you cut in step 2. *For vinyl material, slide our Vent Support Plate under the flooring before placing the vent over it.
Setting up a plunge router correctly is essential for a clean, precise vent opening. The DIY vent system uses a template, special bushing, and router bit to guide your cut and maintain consistent spacing around the vent opening. We recommend following our step-by-step video walkthrough, which shows proper bushing installation, bit alignment, and routing technique to achieve professional results.
The included bushing and router bit are designed to work together with the template to ensure accuracy and repeatability. The bushing controls the cut path while the bit maintains clean edges and consistent depth, reducing the risk of overcutting or misalignment. This system helps installers achieve a flush, secure fit that holds the vent properly and preserves airflow.
Yes, the DIY vent system works well with 3/4" solid wood flooring. This thickness provides excellent support and allows for a clean, flush installation when paired with the proper routing depth and support components. Many installers prefer solid hardwood applications because of the strength and finished appearance it provides.
The LVP support plate is designed to provide structural support when installing the DIY vent system in luxury vinyl plank or other thinner flooring materials. It reinforces the opening and helps prevent flexing while ensuring the vent sits level and secure. This component is essential when working with floating or flexible flooring systems.
Flooring thinner than 1/4" typically requires additional support to ensure proper vent stability. In most cases, thinner materials alone are not sufficient without a support plate or backing structure. We recommend reviewing your flooring type and contacting our team if you are unsure whether your application is compatible.
Once familiar with the process, most installers can route and install a DIY vent opening in a short amount of time. Production time varies based on experience and flooring material, but the system is designed to be efficient and repeatable. For professionals, installation is typically completed in minutes per vent after initial setup.
