Modern DIY Vent System

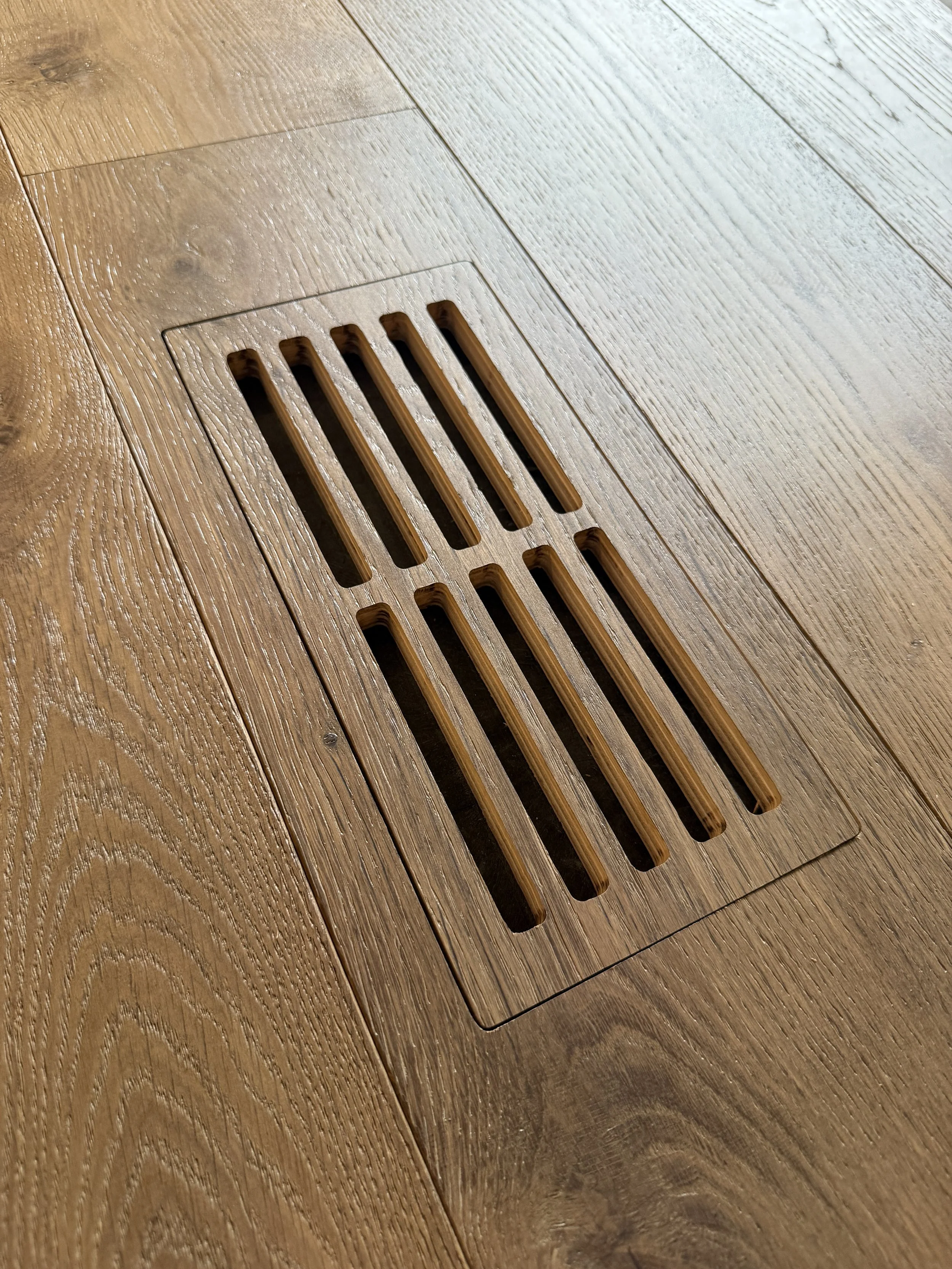

The Modern DIY floor vent system offers a clean, architectural approach to custom floor registers, using your engineered flooring material to create a seamless, flush mount finish exactly matched to your floor.
For Engineered Flooring
How To Use The Classic & Modern DIY Vent System
Watch the above video on how to use our Classic DIY Vent System which is the same process for our Modern DIY Vent System. Below we have it broken out step by step on how to create your vent out of your flooring.
For LVP flooring, a support plate is needed to keep the vent from relaxing into the duct.
-
Step 1:
Square your Two Hole Template to the floor.
*This is the same template you would use on our metal flush mounted vents.
-
Step 2:
Use a plunge router to router out the hole. This is where the vent will cover the duct.
*We recommend to do a few passes, each a little deeper into the material.
-
Step 3:
Grab an extra piece of flooring that you want to cut the vent out of. Take our DIY Vent Template and adhere the template to the flooring using double sided sticky tape.
-
Step 4:
Use a plunge router to router out the vent starting with the slates, and ending with the outer edge.
*Again, we recommend doing a few passes, each time cutting a little deeper into the material.
-
Step 5:
Take your newly cut vent and place it in the hole that you cut in step 2.
*For vinyl material, slide our Vent Support Plate under the flooring before placing the vent over it.
About the Modern Vent System
This Modern DIY Vent System is made up of templates, support plates, router bits, tape, and a bushing giving you everything you need to create your vents out of your engineered flooring material. This system allows installers to quickly and confidently create uniform slot patterns directly on-site—eliminating guesswork while ensuring clean lines and repeatable results. This system also gives you the guide to cut into the floor around the duct area to ensure a perfect hole for the vent to sit in.
